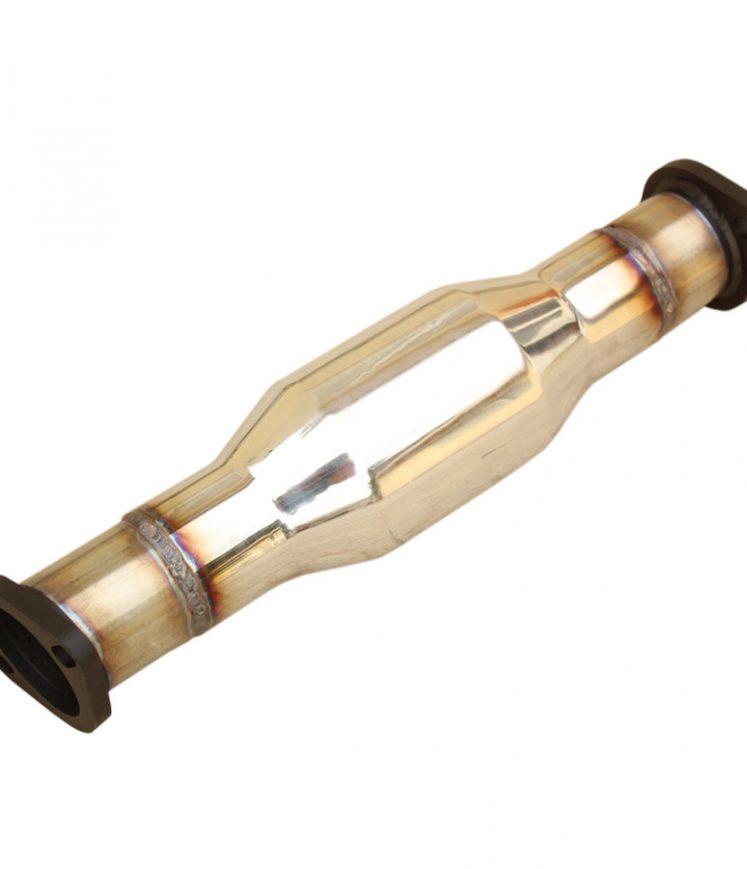

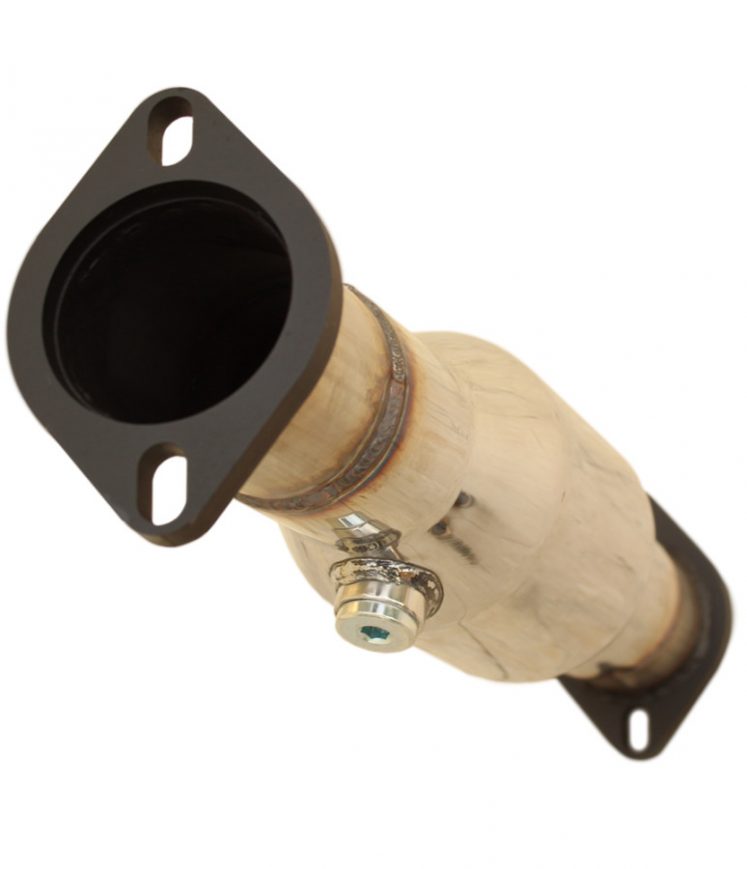

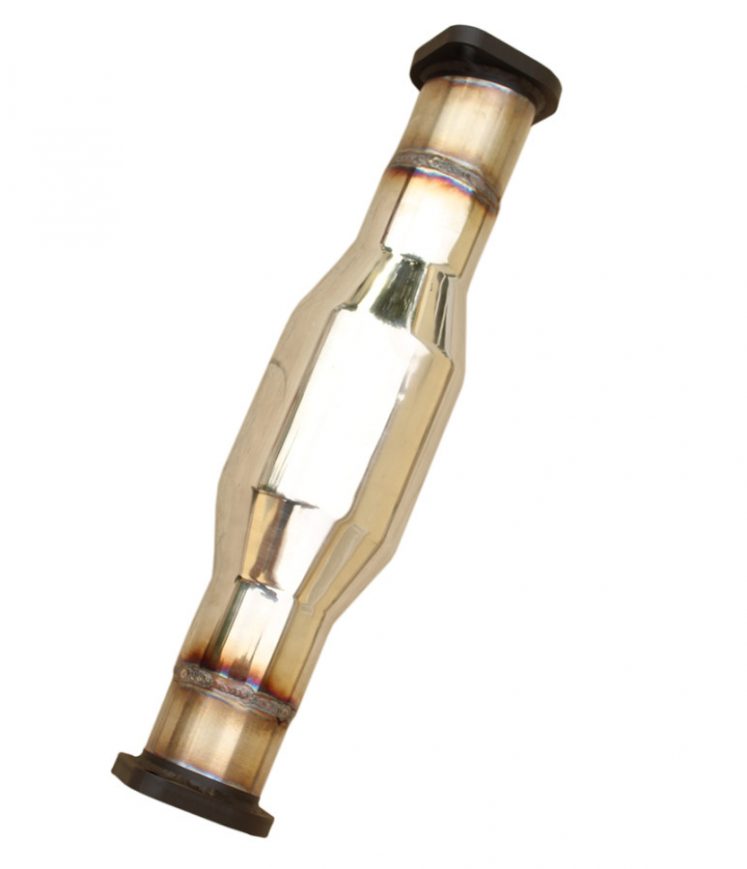

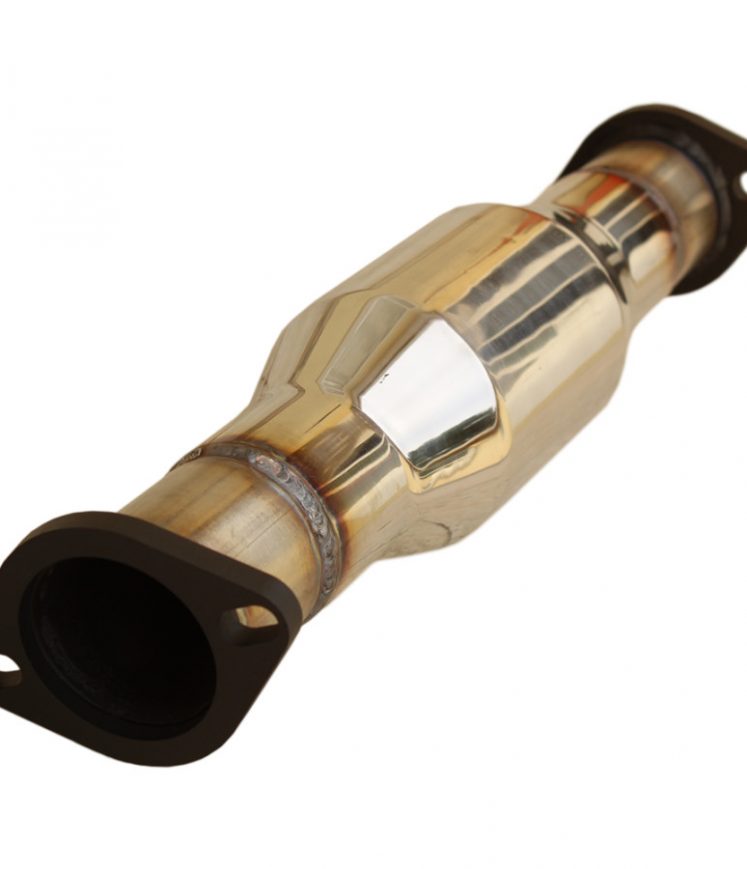

Mazda MX5 1.6/1.8 Mk1 2.5″ Sport Cat 470mm to 440/370mm Adapter Exhaust Pipe
This pipe allows you to remove the cat and replace it with a sports cat pipe and at the same time allows you to use the earlier type exhausts on the cars that were fitted with the 470mm cat pipe.
This is not a direct replacement part and should only be used if you want to fit an exhaust that was designed to fit with either the 370mm or 440mm cat to a car that was originally fitted with the 470mm cat.

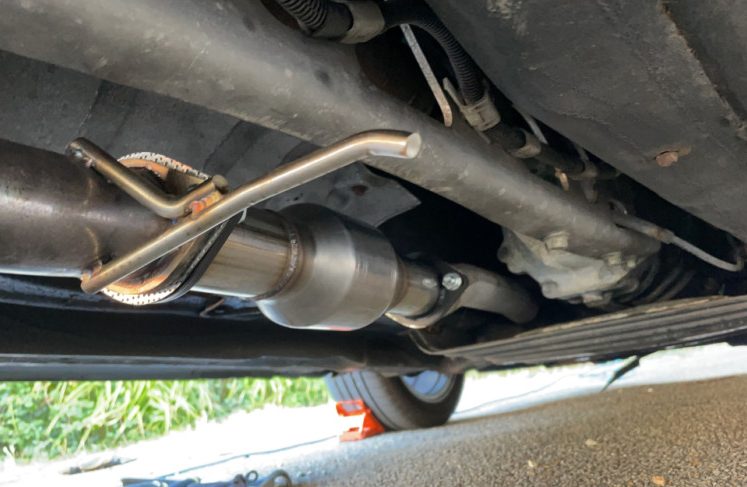

Some of the later Mk1s had a ladder brace fitted to the rear subframe that was not present on the earlier cars. If you want to fit the earlier type exhaust you will usually need to remove this brace and remove the mount points on the subframe to get clearance. This varies from car to car and the manufacturer of the exhaust.

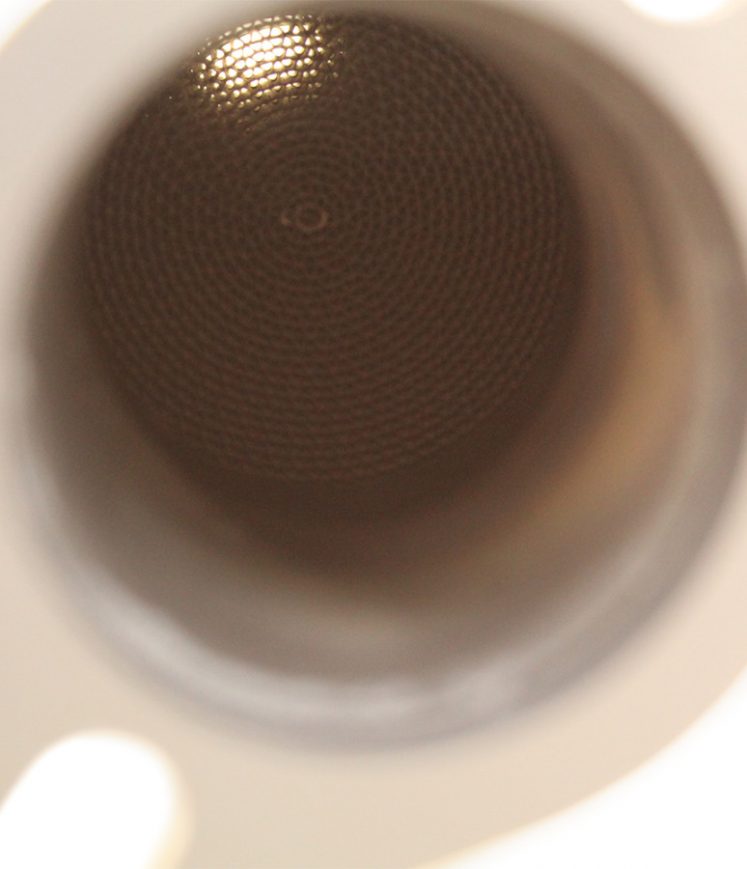

This pipe also removes the OEM cat which is restrictive and gives the car more power by replacing it with a 200 cell sports cat, it is legal to run this pipe on the road in the UK. It is painted in a black VHT paint to prevent corrosion.

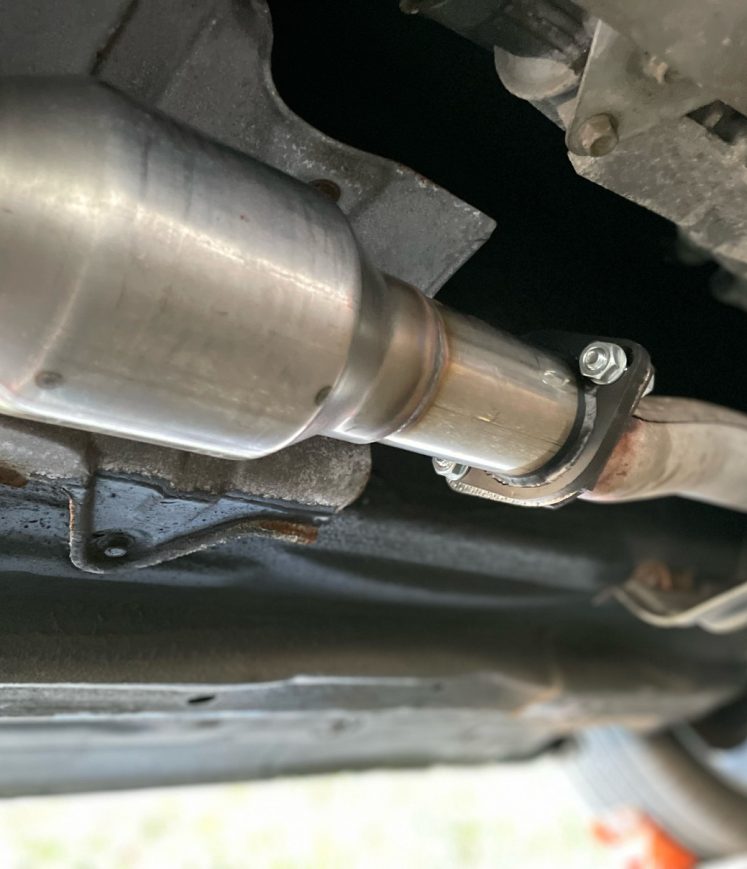

Made from 2.5″ mild steel. This pipe has been designed to fit with OEM late version manifold and downpipe.

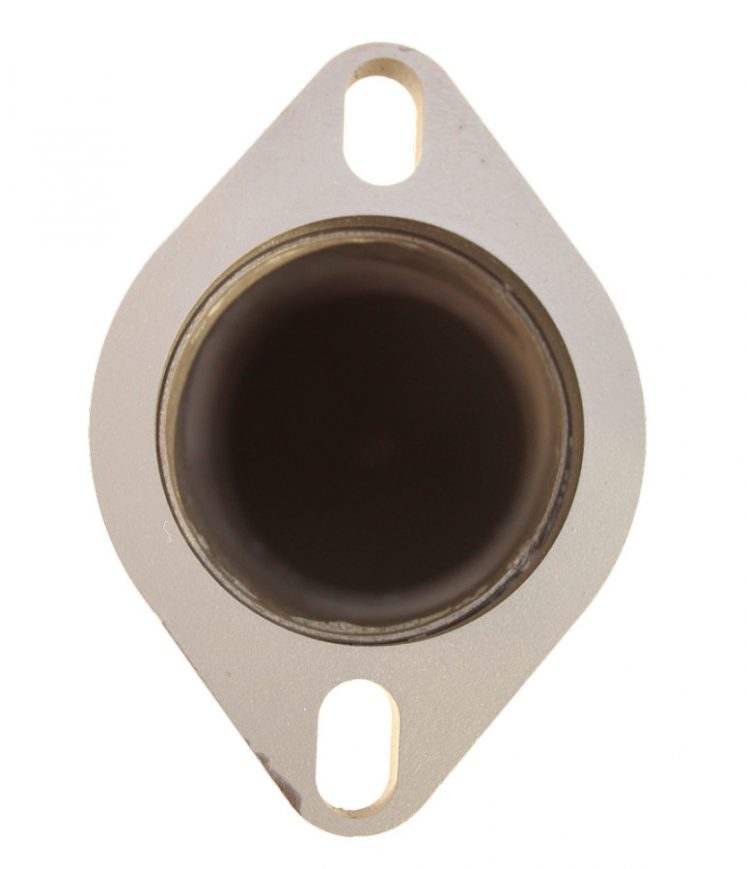

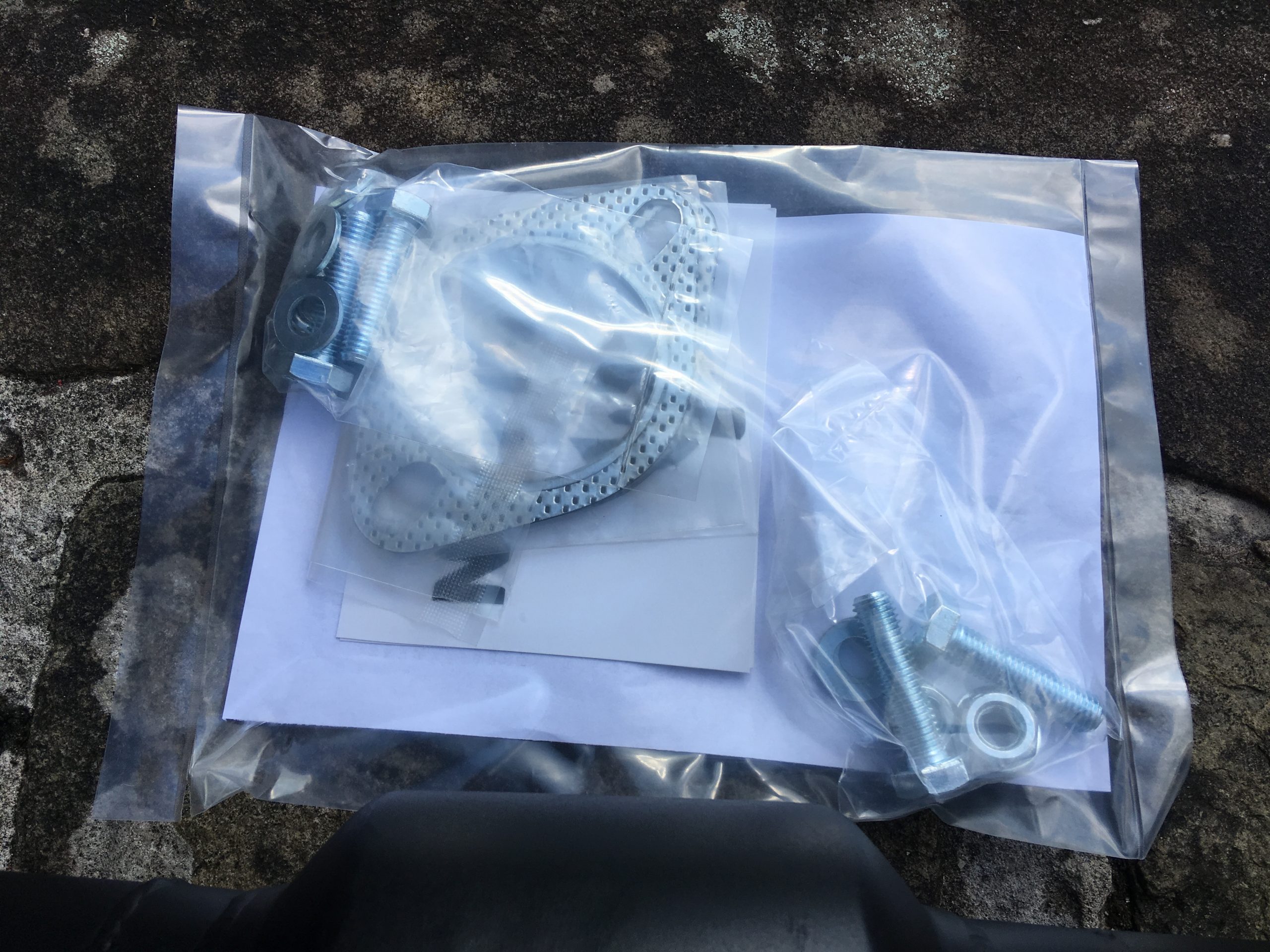

The pipe is made from 10mm mild steel flanges with a 1.5mm mild steel tube and TIG welded joints, it comes complete with a pair of gaskets and a set of M8 nuts, bolts and washers and a pair of stickers.
|Manufacturer Part Number||
|Manufacturer Part Number|
|Tube Bore Size||
2.5" / 63.5mm
|Tube Bore Size|
10mm mild steel
1.5mm mild steel
|Important Fitment Info||
See item description
|Important Fitment Info|
MX5 Mk1 (NA Chassis)
